RCWL-0516 Microwave Radar Detector Human Motion Sensor 5~7M

SKU
SNR.1044
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

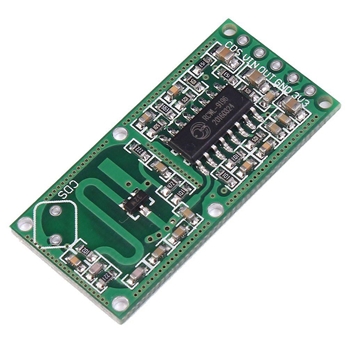

This mini doppler radar sensor module is equipped with supporting DC 4-28V wide voltage This is a mini radar motion sensor module is equipped with RCWL-9196 chip based on the doppler microwave induction technology. It will automatically continuously output the high level TTL signal when there is motion. 360 degree no blind angle detection and maximum 7m sensoring distance with adjustable delay time and sensitivity. It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc.

Specifications:
Working Voltage: DC 4-28V
Working Current: 2.8mA
Detecting Distance:5-7 meter
Transmitting Power: 20mW
Output Signal:TTL(high level 3.3V, low level 0V)
Board Size: 35.9 X 17.3mm/1.41 X 0.68inch

Pin Instructions:
1. 3V3: support output 3.3V voltage, driving current is 100mA
2. GND: ground
3. OUT: controlling signal output, when detect the subject, it will output high level(3.3V),otherwise output low level(0V)
4. VIN: power supply input(4-28V)
5. CDS: trigger signal control: less than 0.7V, OUT output low level, over 0.7V work normally.
Connect the LDR can turn off the detecting function at night.

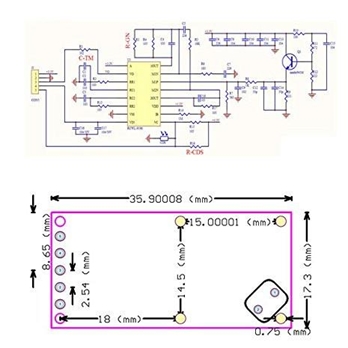

Regulation Function Instructions:
1. C-TM: regulate the repeat trigger time, default time is 2s, add the SMD capacitor to extend the repeat trigger time.
Repeat trigger time calculation: install the SMD capacitor, then test the 9196 3th pin frequency f, the trigger time T=
2. R-GN: regulate the detecting distance,connect the resistor the detecting distance will will short.(default 7m, connect 1M resistor, the detecting distance will be about 5M)
3. R-CDS: the VCC is in parallel connection with CDS(namely 9196 9th pin) through R-CDS. Connect the LDR at the R-CDS to turn off the detecting function at night.


Package includes:

1 X RCWL-0516 Microwave Radar Detector Human Motion Sensor Switch


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
