Specifications:
FT232BL Industrial IC, external EEPRON(93C46)
Support Windows 10 system
Work in 3 types of power input: 5V/3.3V onboard inputs or 3.3V-5V external power input
with 3pcs LED for:TXD LED, RXD LED, POWER LED
GND、RXD、TXD、3V3、5V: with 90 degree bend pins
Reserved PINs for CTS、RTS
come with 500MA fuse
GND:connect to GND
RXD:connect to MCU.TX (data stream):MCU.TX >> FT232 >> PC.RX
TXD:connect to MCU.RX (data stream):MCU.RX << FT232 << PC.TX
3V3/5V:output 3.3V or 5V(the module is power by USB port,the jump cap must be on 3.3V or 5V)
RTS:connect to MCU.CTS (data stream):MCU.CTS << FT232 << PC.RTS
CTS:connect to MCU.RTS (data stream):MCU.RTS >> FT232 >> PC.CTS
Package includes:

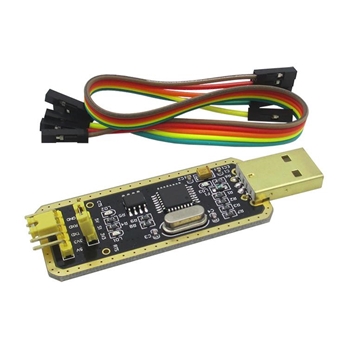

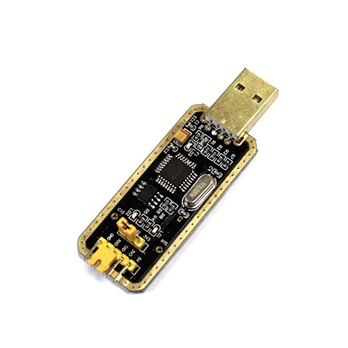

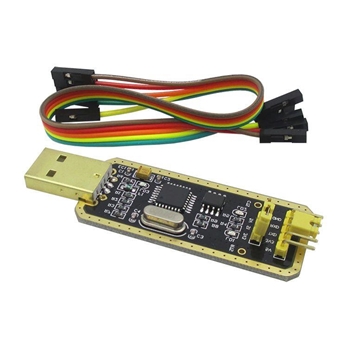

1 X FT232 USB to TTL adapter FT232BL/RL support Window10
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
