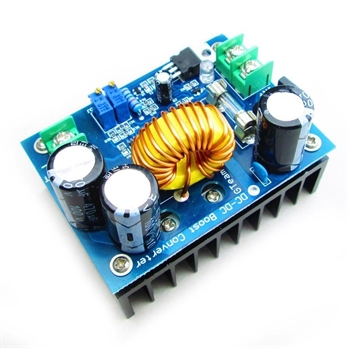

10V-60V to 12V-80V 600W 10A Boost DC-DC Converter Power Supply Step-up Module

SKU
MDL.1161
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Input voltage 1: 12-60VDC (default range, for wide input voltage range applications)
Input voltage 2: 9-16VDC (for 3 lithium battery and 12V battery) , please do not overrange
Input Current: 16A MAX. (over 10A,please enhance heat dissipation,such as 5cm cooling fan)
Quiescent Current: 15mA (when 12V step up to 20V), if the output voltage is higher, the
quiescent current will increase.)
Output Voltage : 12-80VDC (continuously adjustable),default output: 19VDC
Output Current: 12A Max. (over 10A,please enhance heat dissipation.), the greater the input
and output voltage difference , the smaller the output current
Constant current range :0.1-12A
Output power: = Input voltage * 10A, such as: input 60V * 10A = 600W,if need more output
power, such as need the output to 15A,two modules can be used in paralle, the current of each module can be adjusted to 8A.
Conversion efficiency: Up to 95%
Operating Frequency: 150KHz
Operating temperature: -40 to +85 °c (if the ambient temperature is too high, please enhance heat dissipation)
Overcurrent protection: Yes (if the input exceeds 17A, automatically reduces the output voltage)
Short-circuit protection: Yes (20A input fuse,double short-circuit protection.)
Output feeding back protection:Yes (for charging,the separate output diode is not required.)
Input Reverse Polarity Protection:None (If need please install diode at the input port )
Installation: two 3mm screws
Connection: terminals, solderless

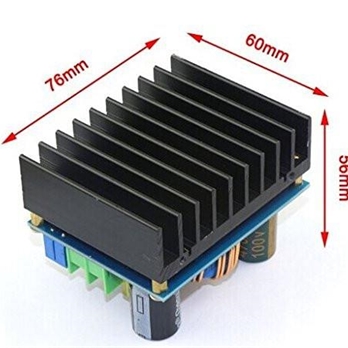

Dimensions: 76mm x 60mm x 56mm
Module Weight: 205 g


Package includes:

1 x 600W 12A DC Boost Voltage Converter
