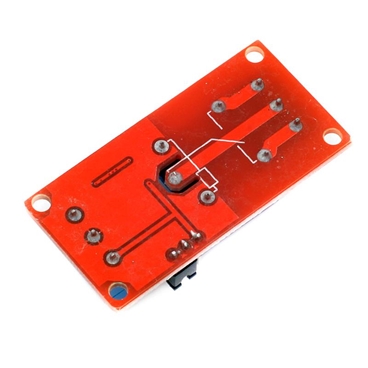

• 1 Channel 5V Relay Module With optocoupler Support High/Low Level Trigger
  • 1 Channel 5V Relay Module With optocoupler Support High/Low Level Trigger
  • 1 Channel 5V Relay Module With optocoupler Support High/Low Level Trigger

1 Channel 5V Relay Module With optocoupler Support High/Low Level Trigger

SKU
MDL.1209
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
  Trigger Voltage: 0-1.5V (LOW); 3-5V (High)
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm * 26mm * 18.5mm (1.9 inch *1.02 inch * 0.72 inch )

Input Connection:
DC +: Positive power supply (VCC)
DC-: Connect power negative ( GND)
IN: Control the pick up of replay by low level or high level

Output Connection:
Left Connection: “NO” means “Normally Open”
Middle Connection: “COM” means “Common”
Right Connection: “NC” means “Normally Closed”

High and Low Level Trigger Effective
High level trigger when the jumper cable connecting “High” to Short Circuit;
Low level trigger when the jumper cable connecting “Low” to Short Circuit;

LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red


Package Includes:
1 X 1 Channel 5V Relay Module With optocoupler Support High/Low Level Trigger

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1

Report an Error (Win $10 Prize)
