XL4015 5A DC-DC CC CV Lithium Battery Step Down Charger Module

SKU
MDL.1220
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Product description

This linear module has constant voltage and constant current function (CC CV). and it has a good performance.
When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV.

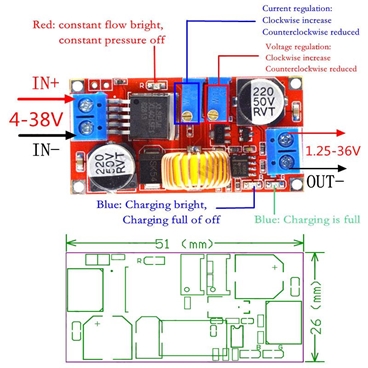

Size: 51 X 26.3 X 14mm
Operating Temperature: -40 ° to +85 °
Voltage Regulation: ± 2.5%
Load Regulation: ± 0.5%
Output ripple: 50mV (max) 20M bandwidth
Switching frequency: 300KHz
Conversion efficiency: 95% (the highest)
Output current: adjustable maximum 5A
Output voltage: 0.8V~30V
Input voltage: 5V~32V
Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.
Advantage:
CC CV
Low ripple
When the module charges a battery, it first use constant current to protect the battery. check the curse above.


Package includes:
1 X 5A Lithium Charger Step down Module [XL4015 Chip]




Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
