K150 is a low-cost high-performance PIC programmer, support most popular PIC chips, programmed, read out, encryption, use a high-speed USB communication, fast programming , the programming quality is stable and reliable . ( speed average PICSTART + 3-5 times ) fully automatic programming checksum ;
equipped with 40pin DIP programming Block, direct programming of 8pin-40pinDIP chip; 8pin-40 pin chip other than through the onboard the ICSP interface online download software ;
software-compatible the Windows98 and Windows2000/NT, Windows XP/windows7 operating system; new device will vary with the PIC escalating. Master chip retain the DIP package with seat !
(Note:
Some manufacturers of similar programmer master chip SMD parts, caused
no small trouble to future upgrades can not even upgrade Our products provide lifetime upgrades service)
Support PIC microcontroller models :
10 series :
PIC10F200 and * PIC10F202 * a PIC10F204 * PIC10F206
The PIC10F220 * PIC10F222 * 12C
series :
PIC12C509 PIC12C509A, PIC12C508 PIC12C508A
PIC12C671 PIC12C672 PIC12CE518 PIC12CE519
PIC12CE673 PIC12CE674 12F
series : h
the PIC12F509 is PIC12F629 the PIC12F635
PIC12F675 PIC12F683 16C
Series :
PIC16C505 PIC16C554 PIC16C558 PIC16C61
PIC16C62 PIC16C62A uses the PIC16C62B PIC16C63
PIC16C63A PIC 16C64 PIC16C64A PIC16C65
PIC16C65A PIC16C65B PIC16C66 PIC16C66A
PIC16C67 the PIC16C620 PIC16C620A PIC16C621
PIC16C621A PIC16C622 PIC16C622A PIC16C71
PIC16C71A PIC16C72 PIC16C72A PIC16C73
PIC16C73A PIC16C73B PIC16C74 PIC16C74A
PIC16C74B PIC16C76 PIC16C77 PIC16C710
PIC16C711 PIC16C712 the PIC16C716 PIC16C745
PIC16C765 PIC16C773 PIC16C774 PIC16C83
PIC16C84 16F
series :
PIC16F505 The PIC16F506, PIC16F54 PIC16F57 *
PIC16F59 * PIC16F627 PIC16LF627A a PIC16F627A
the PIC16F628 PIC16LF628A PIC16F628A PIC16F630, the
the PIC16F631 the PIC16F631-1 PIC16F636 PIC16F636-1
PIC16F639 * PIC16F639-1 * PIC16F648A PIC16F676
the PIC16F677 the PIC16F677-1 The PIC16F684 PIC16F685 *
PIC16F685-1 * PIC16F687 * PIC16F687 * -1 The PIC16F688
PIC16F689 * PIC16F689-1 * The PIC16F690 * PIC16F690-1 *
PIC16F72 PIC16F73 PIC16F74
PIC16F76 PIC16F77 the PIC16F737 PIC16F747
PIC16F767 PIC16F777 PIC16F83 PIC16F84
the PIC16F84A PIC16F87 PIC16F88 The PIC16F818
PIC16F819 PIC16F870 PIC16F871 PIC16F872
PIC16F873 the PIC16F873A PIC16LF873A PIC16F874
PIC16F874A PIC16F876 PIC16F876A PIC16F877
the PIC16F877A 18
Series :
the PIC18F242 PIC18F248 PIC18F252 PIC18F258 The PIC18F442 is PIC18F448
the PIC18F452 PIC18F458 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320
PIC18F2321 PIC18F4210 PIC18F2331 PIC18F2450 PIC18F2455 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2550 PIC18F2580
PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320
PIC18F6525 PIC18F6621 PIC18F8525 PIC18F8621 PIC18F2331 the PIC18F2431
PIC18F4331
PIC18F4431 PIC18F2455 PIC18F2550 PIC18F4455 PIC18F4580 PIC18F2580
PIC18F2420 PIC18F2520 PIC18F2620 PIC18F6520 PIC18F6620 PIC18F6720
PIC18F6585 PIC18F6680 PIC18F8585 PIC18F8680
FEATURES :
1. Supports most of the popular programming PIC chip readout, encryption and other functions!
2. No external power supply, communications, and power supply only a USB print line completed, without any cables.
3. Programming speed than PICSTARTPLUS much faster.
4. Convenient readout chip program area.
5. Fully automatic programming checksum.
6. comprehensive information prompts users a clear understanding of the work of state.

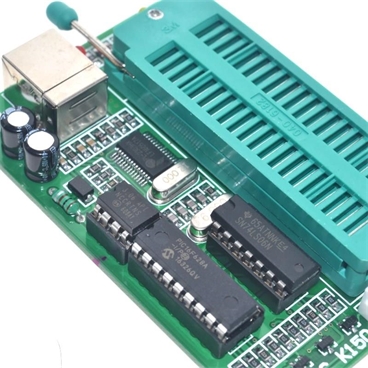

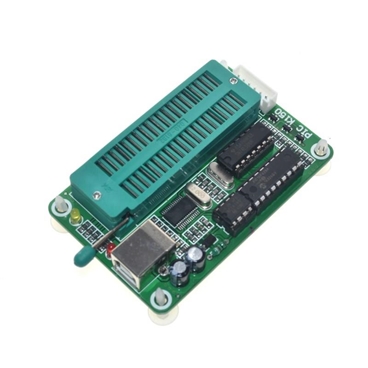

7. equipped 40pin ZIF programming Block, direct programming 8-pin to 40-pin PIC microcontroller chip can ICSP the online programmer or plus conversion seat outside.
8. 8pin40 pin chipoutput directly online download via onboard ICSP .
9. Compatible with the Windows98 and Windows2000/NT, Windows XP / Windows 7 and other operating systems .
Package includes:

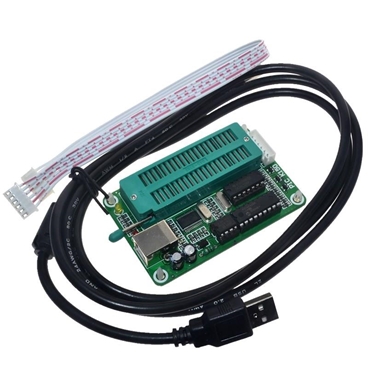

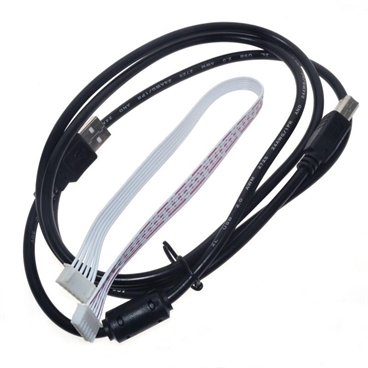

1 X PIC Microcontroller USB Automatic Programming Programmer K150 + ICSP Cable
