Specifications:
Excellent super quiet effect can be achieved only when subdividing 64 or 128 subdivisions.
Working voltage from 6V to 36V, the recommended voltage is 12V.
The maximum current is 1.5A and the default is 0.8A.
Subdivisions of 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128.
Heat sinks must be added to make the heat dissipation better.
Material: Aluminium
Maximum Drive Current: 1.8A (Default 0.8A)
Maximum Voltage: 36V (Usually 12V)
Support Subdivisions: 1, 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128
Product Process: Four-layer PCB Board
Features: Mute Working, Replacement, Motor Driver
Size: 14mm x 13mm x 15mm/0.55" x 0.51" x 0.59" (Approx.)
Package includes:

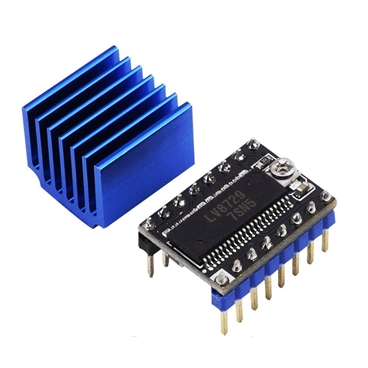

1 X LV8129 Stepper
1 x Heat Sink
Note: all the descriptions and prices are subject to change without prior notice.
