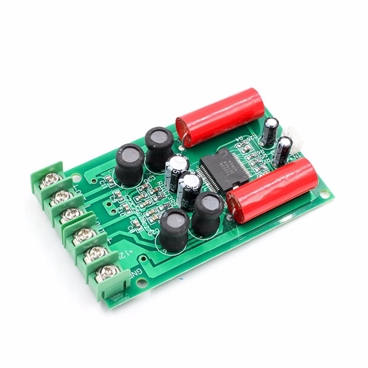

TA2024 2x15W Audio Digital Amplifier Board

SKU
BRD.1057
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Features:

This board is designed around the Tripath TA-2024 integrated circuit. The TA2024 is a 15W/channel continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath's proprietary Digital Power Processing™ technology. Class-T amplifiers offer both the audio fidelity of a Class-AB amplifier and the power efficiency of a Class-D amplifier.

Perfect for projects, this board features over-current and over-temperature protection circuits. It can be built into powered speakers or used as a standalone amplifier. The board's small size is even ideal for inclusion in OEM products or store displays.

Specifications:

 • Output power: 9W x 2 @ 4 ohms (0.04% THD+N), 11W x 2 @ 4 ohms (0.1% THD+N), 6W x 2 @ 8 ohms (0.1% THD+N), 15W x 2 @ 4 ohms (10% THD+N), 10W x 2 @ 8 ohm (THD+N)

• IHF-IM: 0.18% @ 1W, 4 ohms

• Efficiency: 88% @ 10W, 8 ohms

• Dynamic range: 102 dB

• Recommended power: 12 VDC, 2A

• Dimensions: Board: 3.54" x 2.09" (90 X 53 mm); Mounting holes (center to center): 2.88" x 1.81".


Highlights

  • Pre-assembled, pre-tested for easy project integration

  • Class T fidelity and energy efficiency

  • 2 x 15W continuous power, adequate for most speaker


Package includes:

1 X  TA2024 2x15W Audio Digital Amplifier Board


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
