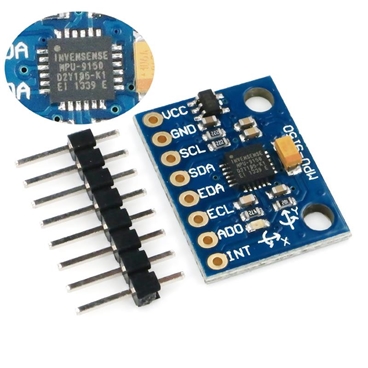

• MPU-9150 MPU6050 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor Module 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module IIC/SPI for Arduino
  • MPU-9150 MPU6050 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor Module 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module IIC/SPI for Arduino

MPU-9150 MPU6050 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor Module 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module IIC/SPI for Arduino

SKU
MDL.1285
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Product description

Digital-output 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of 250, 500, 1000, and 2000dps
Tri-Axis accelerometer with a programmable full scale range of 2g, 4g, 8g and 16g
Tri-axis compass with a full scale range of 1200uT
Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometer, gyroscope, and compass
VDD Supply voltage range of 2.4V–3.46V,  VLOGIC of 1.8V 5% or VDD
Gyro operating current: 3.6mA (full power, gyro at all rates)
Gyro + Accel operating current: 3.8mA (full power, gyro at all rates, accel at 1kHz sample rate)
Gyro + Accel + Compass + DMP operating current: 4.25mA (full power, gyro at all rates, accel at 1kHz sample rate, compass at 8Hz rate)
Accel low power mode operating current: 10uA at 1Hz, 20uA at 5Hz, 70uA at 20Hz, 140uA at 40Hz
Full Chip Idle Mode Supply Current: 8uA
400kHz Fast Mode IC serial host interface
On-chip timing generator with +/- 1% frequency variation over full temperature range
10,000g shock tolerant
I2C Pullup Resistors populated on board.
Solder Jumper for Switching LSB of I2C Address 0


Package includes:

1 X MPU-9150 MPU6050 9-Axis 9 DOF 16 Bit Gyroscope Acceleration Magnetic Sensor Module 9-Axis Attitude Gyro Accelerator Magnetometer Sensor Module IIC/SPI for Arduino




Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
