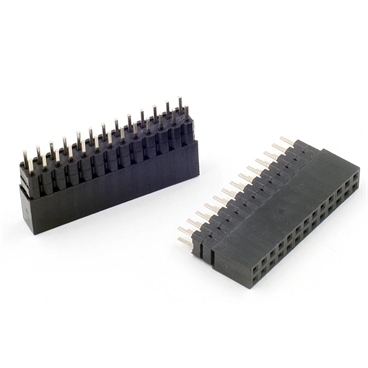

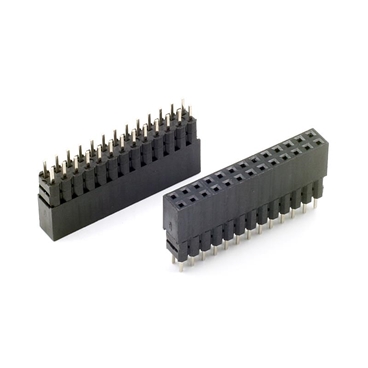

26 Position Elevated Socket Connector Through Hole [5pcs Pack]

Connector Type: Elevated Socket
Contact Type: Forked
Style: Board to Board
Number of Positions: 26 [2 rows X 13pin]
Pitch - Mating:0.100" (2.54mm)
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Insulation Color: Black

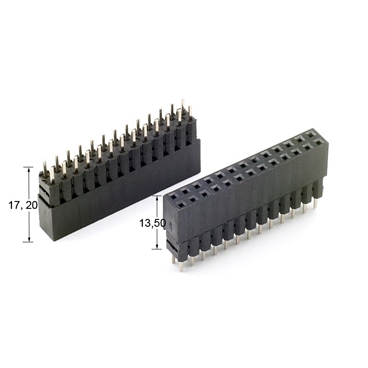

Insulation Height: 13.50mm
Contact Length - Post: 3.4mm
Operating Temperature: -55°C ~ 105°C
Material Flammability Rating: UL94 V-0
Current Rating (Amps): 5.7A per Contact
Voltage Rating: 550VAC
Insulation Material: Liquid Crystal Polymer (LCP)

Package includes:

1 X 26 Position Elevated Socket Connector Through Hole [5pcs Pack]

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
