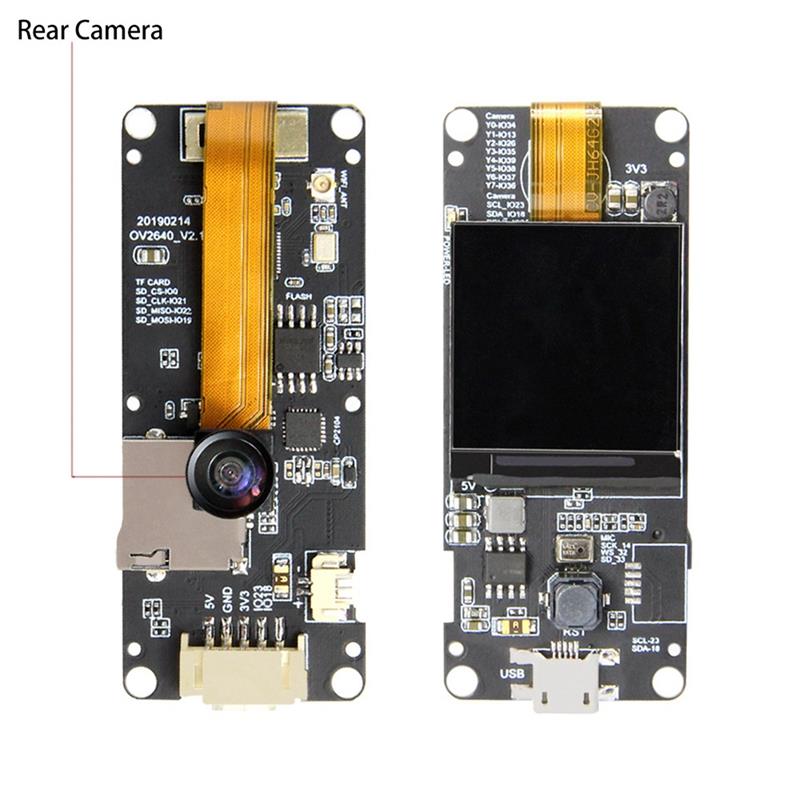

TTGO T-Camera Plus ESP32-DOWDQ6 8MB SPRAM Camera Module OV2640 1.3 Inch Display Rear Camera Fish-eye Lens

SKU
MDL.1337
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Hardware Specifications


ChipsetESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
FLASHQSPI flash/SRAM, up to 4 x 16 MB
SRAM 520 kB SRAM +  8MBytes External SPRAM
KEYreset
dispalyIPS Panel ST7789/1.3 Inch
Power indicator lampred
USB to TTLCP2104
CameraOV2640  2Megapixel
on-board clock40MHz crystal oscillator
working voltage2.3V-3.6V
working currentabout 160mA
working temperature range-40℃ ~ +85℃
size69.13*28.41*8.45mm
MicMSM261S4030H0
SDCardIntegrated external SD card slot




Power management Chip

IP5306

Power SupplyUSB 5V/1A
charging current1A
battery3.7V lithium battery

WIFI

Description

StandardFCC/CE/TELEC/KCC/SRRC/NCC
protocol802.11 b/g/n/e/i (802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
frequency range2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power22dBm
communication distance300m

Bluetooth

Description

protocolmeet bluetooth v4.2BR/EDR and BLE standard
radio frequencywith -98dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
audio frequencyCVSD&SBC audio frequency

Software specification

Description

wifi ModeStation/SoftAP/SoftAP+Station/P2P
security mechanismWPA/WPA2/WPA2-Enterprise/WPS
Encryption Type AES/RSA/ECC/SHA
firmware upgradeUART download/OTA(Through network/host to download and write firmware)
Software DevelopmentSupport cloud server development /SDK for user firmware development
networking protocolIPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User ConfigurationAT + Instruction set, cloud server, android/iOSapp
OSFreeRTOS


Package includes:

1 X TTGO T-Camera Plus ESP32-DOWDQ6 8MB SPRAM Camera Module OV2640 1.3 Inch Display Rear Camera Fish-eye Lens




Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
