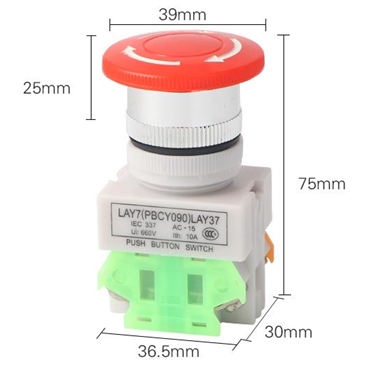

Mushroom head power switch LAY37 emergency stop push button

Specifications:

Type : Lacthing;

Contact Type : 1 NO + 1 NC;Poles : DPST

Ui : 660V;

Ith : 10A;

Terminals Quanlity : 4 Pins

Button Diameter : 40mm/ 1.6";

Mount Hole Diameter : 22mm / 7/8";

Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)
Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);

Cap Lamp : Red;Material : Plastic,Metal
Color : As Picture Shown;

Weight : 46g;

4 terminals, 22mm mounting hole,

1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.

Used widely to control the electronetic starter, contactor, relay and other automatic control electric circuits.

Package Content : 1 x Push Button Switch

Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Package includes:

1 X Mushroom head power switch LAY37 emergency stop push button

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
