DC 6-30V 6A Motor Speed Controller Reversible PWM Controller

Specifications:

1. Use imported chips and materials to ensure the quality of the products
2. Double panel design, panel soldering is not easy to fall off
3. Voltage: DC 6V / 12V / 24V / 30V (DC 6V ~ 30V)
4. When the motor speed is adjusted to low speed, the noise of the motor is very low.
5. The controller has a forward and reverse indicator and a power-on indicator.
6. Rated current 6A; maximum current 10A
7. Power:  Maximum 200W
8. PWM output range 0%-100%; motor can be adjusted to stop, or can be adjusted to the highest speed
9. PWM frequency: 16khz
10. Control voltage: 0-5v (voltage control type, you can use PLC or single-chip input 0-5V signal to directly control the speed of the motor)

Introduction of the switch button

1. Control the clockwise or counterclockwise rotation of the motor; control the start and stop of the motor
2. Adjust the speed of the motor

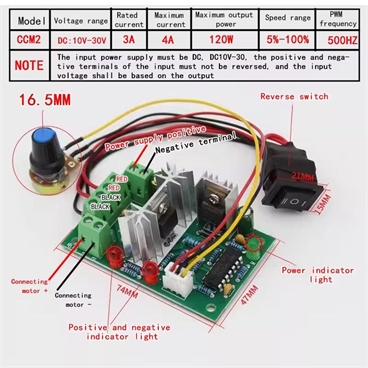

The introduction of wiring method
+ :  Connect DC power supply positive
- :  Connect DC power supply negative
M1 :  Connect the positive of the motor
M2 :  Connect the negative of the motor

Package includes:

1 X DC 6-30V 6A Motor Speed Controller Reversible PWM Controller

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 63.50

Std. Packing Qty. (pcs): 1
