Specifications:
Operating Voltage: 4.8V~6V
Speed: 0.14 sec/60deg (4.8v)
0.12sec/60deg (6v)
Torque: 5.5kg.cm (4.8v)
6.5kg.cm (6v)
Size: 40X20X38.5mm
Weight: 56g
Motor: 3 pole Core motor

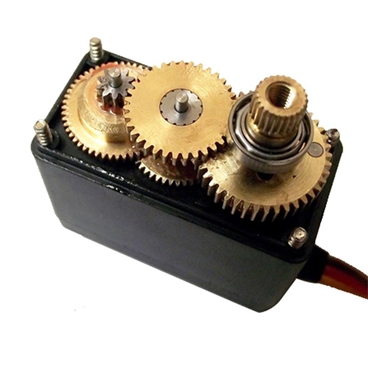

Gear Train: Full Metal Gear
Ball Bearing: 2BB
Dead band width: 4usc
Interface: (JR)
Wire length: 30cm
Type: Digital,2BB

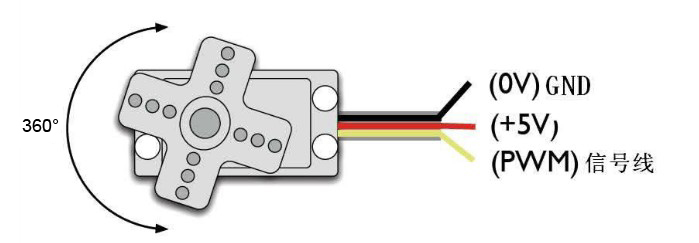

Rotation angle options:
1) 180 degree(PWM500-2500us)
2) 270 degree(PWM500-2500us)
3) 360 degree(PWM500-2500us)
Package lncludes:

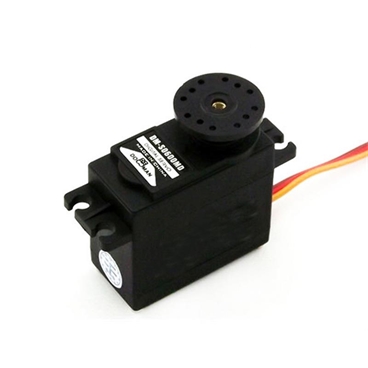

1pcsXDM-S0600MD servo

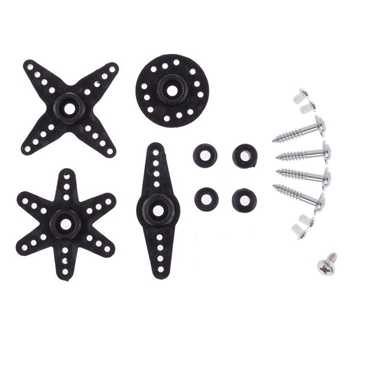

Accessaries:servo horns,rubber grommets, eyelets and mounting screws
1 x double sided servo horn
1 x 4-arm servo horn
1 x 6-arm servo horn
1 x round servo disc
4 x rubber grommets with brass inserts
4 x mounting screws
1 x mounting bolt
3 x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 56.00
Std. Packing Qty. (pcs): 1
