Specifications:
Module type: Switching power supply, boost power supply
Input voltage: DC2.5~11.5V (lower than output voltage by 0.5V)
Input current: 2A (max)
Output current: determined by input, calculated according to subsequent instructions
Output voltage: DC 5/9/12V (optional)
Output power: User input voltage x1 5 (max)
| Input Voltage | Output Voltage | Max Output Current (Amp) |
| 3V | 5V | 0.9 |
| 4V | 1.2 | |
| 3V | 9V | 0.5 |
| 5V | 0.84 | |
| 7V | 1.17 | |
| 3V | 12V | 0.38 |
| 5V | 0.63 | |
| 7V | 0.88 | |
| 9V | 1.13 |
Switching frequency: approximately 1.2MHz
Working mode: PWM/PFM
Quiescent current: 200ua-600ua (PFM mode)
Adjustment method: Jumper pad selection, 5/9/12V, ADJ pad adjustable
Module interface: solder pad (capable of connecting to 2. 54mm rows of pins)

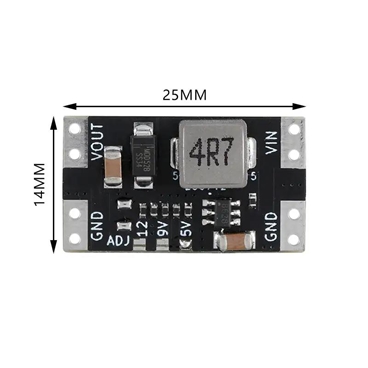

Module size: 24.4 x 13.7mm (manual measurement with deviation)
Package includes:

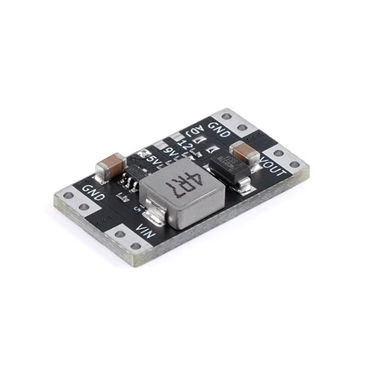

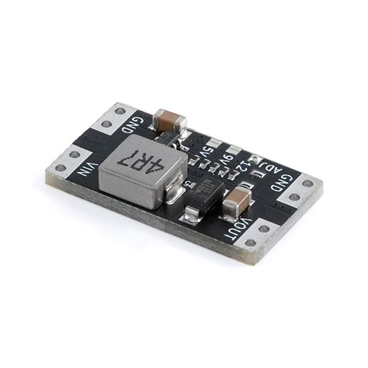

1 X Mini DC-DC Step Up Booster Supply Module
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
