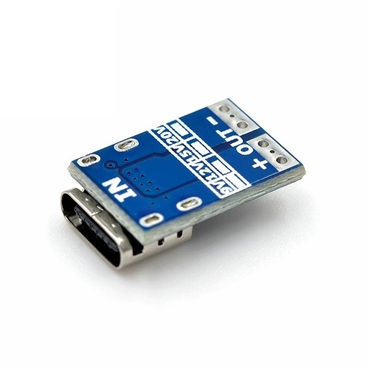

DC5V 9V 12V 15V and 20V USB-C PD Trigger Board Module

Specifications

Many power supplies now support fast charging output, and the output voltage can be adjusted.

Generally, A PD/QC protocol charger would allow different output like 5V, 9V, 12V or 20V, depending on the power supply design. But the default output is 5V without notifying the charger to supply in any higher power voltage.

This module will help to trigger a higher voltage output from your charger.


Applicable products: monitors, routers, computers, fan heaters, cooling chips, etc.

Product Features and Parameters
1. Type-c interface, large current and small loss. 2. 8-bit processor, low power consumption, no heat.

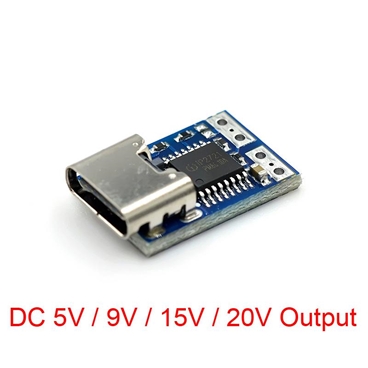

3. The output voltage can be chosn from 5V, 9V, 12V and 20V, please specify when ordering.
4, C port can pass 5A current

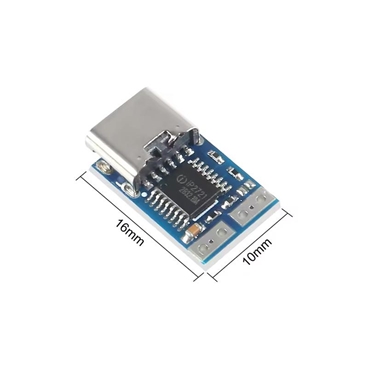

5. 23*12mm ultra-small volume, reserved positioning slot.
6. Bring a decoy indicator light. When the agreement handshake is successful, the light is on.

Precautions
1. The power supply must support the PC/QC protocol, which can be USBA port, type-c port
2. The electrical equipment cannot be a mobile phone, tablet computer, etc. Whether the mobile phone is fast charging, it is useless to add this module, and it is not necessary for fast charging.
3. Know whether the power of your load is less than the power of your power supply. Otherwise overload power protection and decoys are fine.
4. Before use, confirm whether the time output voltage is the voltage of the applied electrical equipment, so as to avoid misoperation causing the equipment to burn, otherwise the consequences will be at your own risk.
5. The board is changed without technical confirmation. The shop is not responsible for technical support and after-sales.

Package includes:

1 X DC5V 9V 12V 15V and 20V USB-C PD Trigger Board Module.

Note: all the descriptions and prices are subject to change without prior notice.
