Specification:
With this Data Log Shield for WiFi D1 Mini board, can saving data to files on any FAT16 or FAT32 formatted MicroSD card. The included RTC (Real Time Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when!
SD card interface works with FAT16 or FAT32 formatted cards.
Real time clock (RTC) keeps the time going even when the power disconnected. The coin cell battery backup last date and time.
RTC protected from wrong connecting of battery.

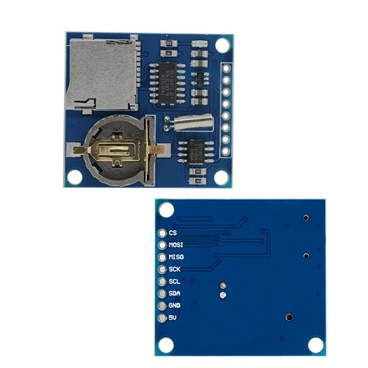

Pinout:
RTC:
D1 - SCL
D2 - SDA
CD card:
D5 - CLK
D6 - DO
D7 - DI
D8 - CS
Battery Type:CR1220
Note: please note that the module does not come with a battery for safety shipment reason.
DataLog Shield for WeMos D1 mini, with pin-headers set:
Male Pin Header 1x8pins = 2 pcs
Female Pin Header -BLACK 1x8pins = 2 pcs
Stackable Header - BLACK 1x8pins = 2 pcs
Package includes:

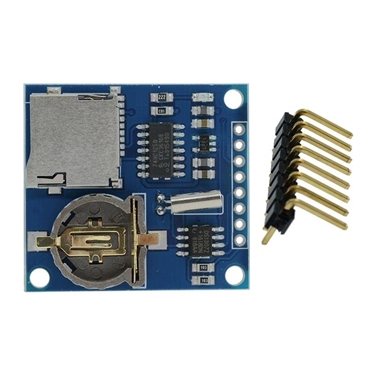

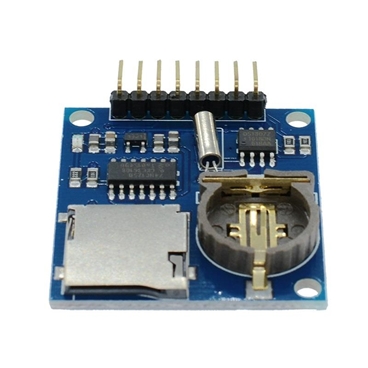

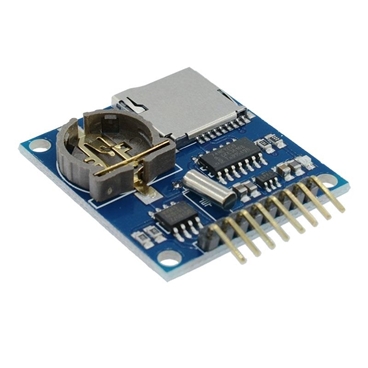

1 x Wemos D1 Mini Real Time Clock Data Log Logger Module RTC DS1307
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
