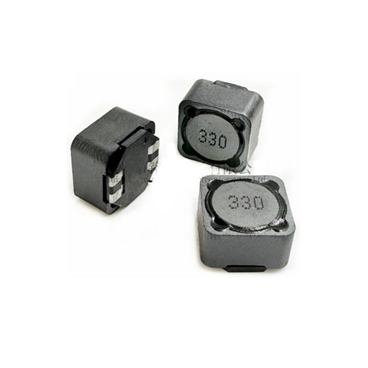

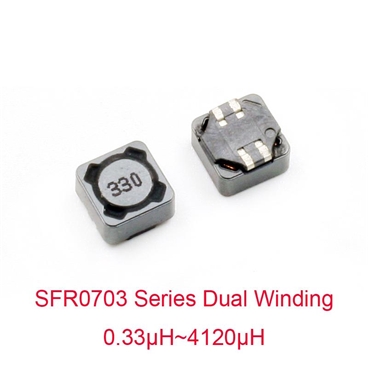

SFR0703 Series Dual Winding Shielded Power Conductors

< >

SFR0703 Series Dual Winding Shielded Power Conductors

SKU: CPT.1525

Customer #

MOQ: 1

Packaging: 1pcs/lot

Unit Price: from $0

: Get Your Discount Here

Payment Accepted

Wholesale	Prices
50+	RFQ
<50	RFQ
<20	RFQ
20+	RFQ
50+	RFQ
200+	RFQ

Buyer Protection

Full Refund if you don't receive your order
Full or Partial Refund, if the item is not as described

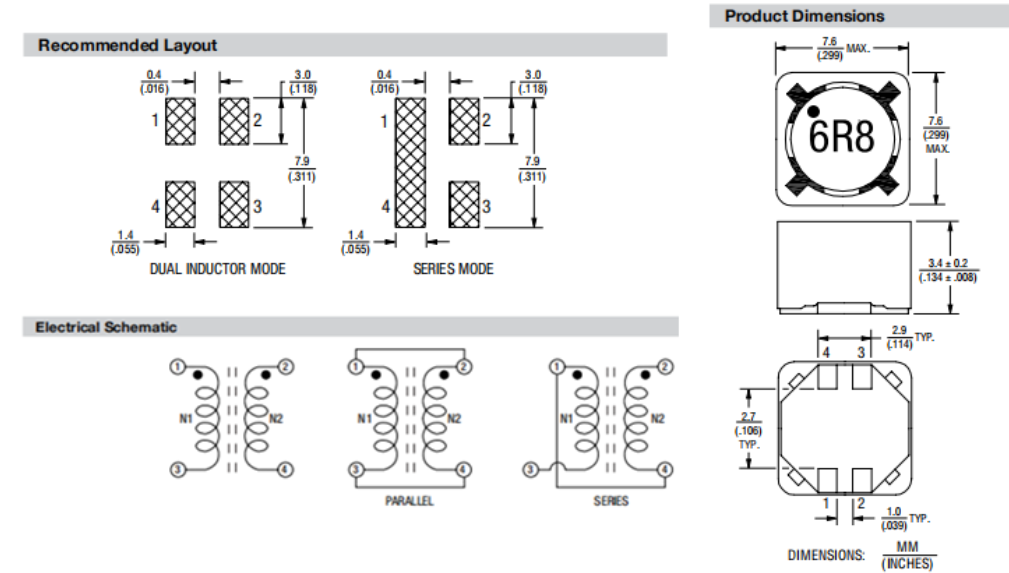

Specifications:

Parallel Rating					Series Rating
Part No.	Inductance @100Khz L(μH) ±20%	DCR(Ω) Max	Irms(A)	Last(A)	Inductance @100Khz L(μH) ±20%	DCR(Ω) Max	Irms(A)	Last(A)
0703-R33M	0.33	0.0092	6.19	14.4	1.34	0.04	3.1	7.18
0703-1R0M	1	0.0135	5.25	7.97	3.86	0.072	2.63	3.99
0703-1R5M	1.5	0.0191	4.64	6.52	5.83	0.11	2.32	3.26
0703-2R2M	2.2	0.0217	4.11	5.52	8.13	0.132	2.06	2.76
0703-3R3M	3.3	0.0316	3.31	4.22	13.6	0.182	1.66	2.11
0703-4R7M	4.7	0.0406	3.09	3.78	17.1	0.242	1.55	1.89
0703-6R8M	6.8	0.0658	2.55	3.12	25.5	0.285	1.28	1.56
0703-8R2M	8.2	0.0772	2.19	2.66	34.1	0.306	1.1	1.33
0703-100M	10	0.0826	2.08	2.47	39.6	0.342	1.04	1.24
0703-150M	15	0.119	1.83	2.05	59.6	0.47	0.916	1.03
0703-220M	22	0.15	1.62	1.67	89.5	0.62	0.811	0.83
0703-330M	33	0.24	1.31	1.35	140.5	1	0.653	0.68
0703-470M	47	0.338	1.08	1.14	194.2	1.28	0.542	0.57
0703-680M	68	0.507	0.89	0.96	289.3	1.92	0.444	0.48
0703-820M	82	0.61	0.86	0.89	324.7	2.28	0.43	0.44
0703-101M	100	0.715	0.73	0.73	397.6	2.64	0.367	0.39
0703-151M	150	0.986	0.58	0.58	608.2	3.63	0.289	0.32
0703-221M	220	1.48	0.52	0.52	922.6	5.5	0.26	0.27
0703-331M	330	2.16	0.42	0.42	1335	8.25	0.211	0.22
0703-471M	470	2.82	0.35	0.35	1859	11.22	0.173	0.18
0703-681M	680	3.96	0.29	0.29	2930	16.17	0.143	0.15
0703-821M	820	5.01	0.27	0.27	3559	20.07	0.134	0.14
0703-102M	1000	6.11	0.26	0.26	4120	24.42	0.128	0.13

Package includes:

1 X SFR0703 Series Dual Winding Shielded Power Conductors

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
