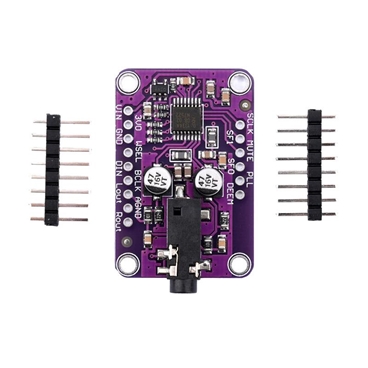

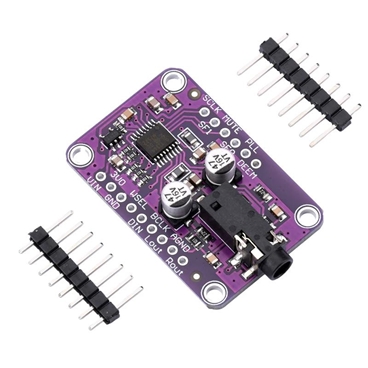

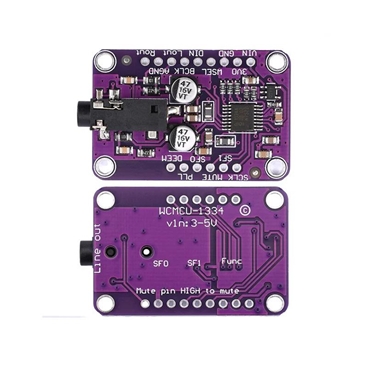

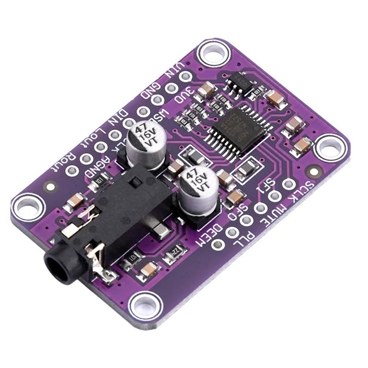

UDA1334A I2S Stereo Decoder Board 3.3V~5V

Features:

Made of high quality electronic components, it is solid, durable, good conductivity and high performance, long service life.

Its I2S Stereo DAC breakout is a perfect match for any I2S-output audio interface.

Its logic level is 3.3 - 5V(a rarity), and can be used to process multiple different formats by setting two pins to high or low.

And DAC can process data immediately, and give you a clear, analog, stereo line level output.

It's even cool with MCLK-less I2S interfaces such as the Raspberry Pi (which it's ideal for), a built in PLL will generate the proper clock from the incoming signal.

For inputs, you can use classic I2S (the default) or 16-bit, 20-bit or 24-bit left justified data.

And you can set it up to take an input system/master clock, but we default-set it to just generate it for you.

So you only need to connect Data In, Word Select (Left/Right Clock) and Bit Clock lines. If you want, there's a mute pin and a de-emphasis filter you can turn on.

Specification:

Material: Circuit Board, Electronic Component
Voltage: DC3.3~5V


Package includes:
1 x Decoder Module
2 x Pin Header

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
