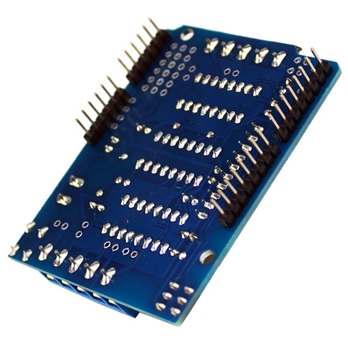

L293D 4 channel motor control shield

SKU
MTR.1024
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described
L293D is a monolithic integrated, high voltage, high current, 4-channel driver,you can use DC motors and power supplies of up to 36 Volts, the L293D chip is also known as a type of H-Bridge,which is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
  •     2 interface for 5V Servo connected to the Arduino’s high-resolution dedicated timer – no jitter.

  •     Can drive 4 DC motors or 2 stepper motors or 2 Servo.

  •     Up to 4 bi-directional DC motors with individual 8-bit speed selection.

  •     Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.

  •     4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.

  •     Pull down resistors keep motors disabled during power-up.

  •     2 external terminal power interface, for seperate logic/motor supplies.

  •     Tested compatible for Arduino Mega, Diecimila & Duemilanove.

  •     Reset button.

Feature:
  • Control up to 4 DC motors.

  • Control 2 Servos.

  • Logic Control Voltage VSS: 4.5 ~ 5.5 V

  • Motor Supply Voltage VSS: 15v

  • Drive operating current IO: 1.2A

  • 8 Stage Serial Shift Registers


Package includes:

1 X L293D 4 channel motor control shield









Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
