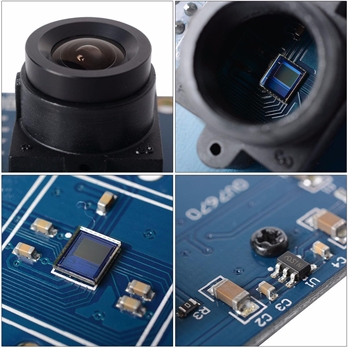

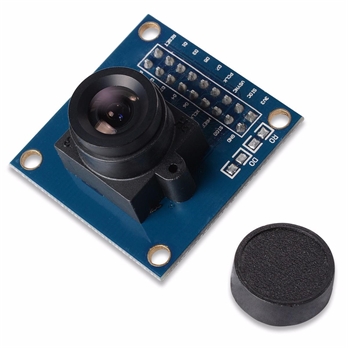

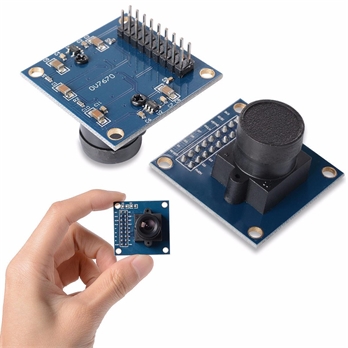

OV7670 Image sensor mage transducer module

SKU
MDL.1019
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Specifications:

Photosensitive array: 640X480

IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
Power operation: 60mW/15fpsVGAYUV
Sleep: <20μA
Temperature Operating: -30 ℃ to 70 ℃
Stable: 0 ℃ to 50 ℃
Optical size: 1/6 "
FOV: 25 °
Maximum Zhen rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
SNR: 46 dB
Dynamic range: 52 dB
View Mode: Progressive
Electronic Exposure: 1 line to 510 line
Pixel Size: 3.6μm x 3.6μm
Dark current: 12 mV / s at 60 ℃


Features:

High sensitivity suitable for illumination applications
Low voltage suitable for embedded applications
Standard SCCB interface compatible with I2C interface
RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format
Supports VGA, CIF, and from a variety of sizes CIF to 40x30
VarioPixel sub-sampling mode
Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination light stripes, automatic black level calibration image quality controls including color saturation, hue, gamma, sharpness ANTI_BLOOM
ISP has a compensation function to eliminate noise and dead pixels
Support for image scaling
compensation for loss of optical lens
50/60Hz automatic detection
Saturation automatically adjust (UV adjustment)
Automatically adjust edge enhancement
Noise Reduction automatically adjust



Package Includes:

1 X OV7670 Image sensor mage transducer module


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
