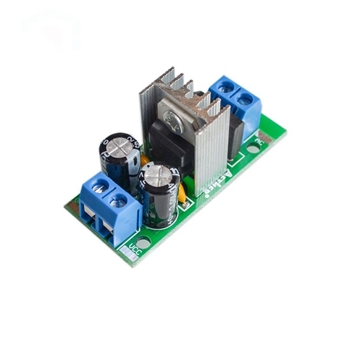

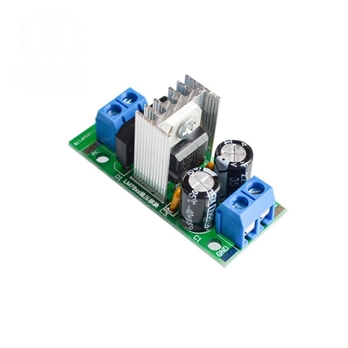

LM7812 3 terminal Voltage Regulator Module 12V Voltage Regulator Module

SKU
MDL.1152
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Specifications:

Type: L7812 LM7812
Size: 45mm x 20mm (LxW)
Input voltage (withstand voltage):
DC: 15 ~ 24V,
Communication: 12 ~ 18V
Output characteristics:
Load regulation: 100mV
Quiescent current: 8mA

Output noise voltage: 42uV
Input and output differential pressure: 2V
Output impedance: 15mΩ
Peak current: 1.5A


This board uses full-wave bridge rectifier, AC, DC can be input, and input regardless of positive and negative.

Filtering using two 35V 220UF large capacity electrolytic capacitors do buffer filter, the output current can be stable and smooth. L7812 with a heat sink, and 3A rectifier bridge, to meet the high current continuous output.


Application:
DIY power, monitoring power, experimental power, camera power, car power, communication equipment power supply.


Package includes:

1 X L7812 LM781212V Regulator Module Rectifier Filter Power Converter


Note: all the descriptions and prices are subject to change without prior notice.
