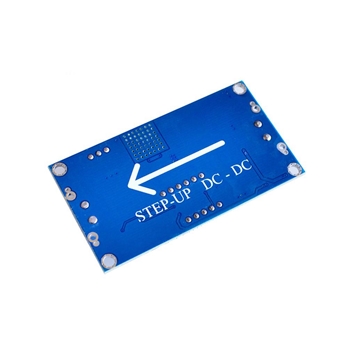

XL6009 DC-DC Booster Module Input 3-32V to Output 5-35V

SKU
MDL.1164
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

The self-calibration method of voltmeter:
1. When the voltmeter shows output voltage, long press the right button for 2 seconds, then release, voltmeter and "OUT" LED flash in synchronization. Now the voltmeter enters into output voltage calibration mode. Similarly, when the voltmeter shows input voltage, long press the right button for 2 seconds, then release, voltmeter and "IN" LED flash in synchronization, now the voltmeter enters into input voltage calibration mode.
2. Touch the right button, the voltage rises a unit; Touch the left button, the voltage drops a unit. Due to a unit is less than 0.1 V, so you need to continuously press 5 times to see that the voltmeter changes 0.1 V.
3. After calibration, long press the right button for 2 seconds, then release. Now the voltmeter exits the voltage calibration mode. All the parameters will be saved automatically.
Note: Once calibrate the voltmeter, you can get the accurate voltage value on the whole voltage range.


Size: 60X35X13.5mm
Weight: 24g
Input Voltage: 3-32V
Output Voltage: 5-35V
Output Current: 4A(MAX)
Output Ripple: 50mV (Higher voltage, larger current and ripple)
Switching Frequency: 400KHz (LM2577 only 50KHz)
Operating Temperature: -45 to +85 degree centigrade
Transfer Efficiency: less than or equal to 94%
Load Regulation: plus or minus 0.5%
Voltage Regulation: plus or minus 0.5%
Wiring Method: Terminal or solder terminal


Package includes:

1 X   XL6009 DC-DC Booster Regulator Module Input 3-32V to Output 5-35V Instead of LM2577 with Digital Tube Display Step-up Module


Note: all the descriptions and prices are subject to change without prior notice.
