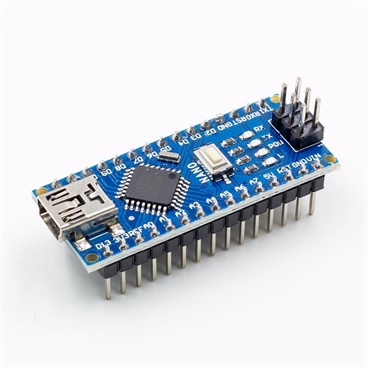

Arduino Nano V3.0 (CH340) micro controller soldered Pin

SKU
BRD.1041
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

Overview:

The Nano V3.0 can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27).

The power source is automatically selected to the highest voltage source.

Features:

   ● Automatic reset during program download
   ● Power OK blue LED on the bottom, Green (TX), red (RX) and orange (L) LED
   ● Auto sensing/switching power input
   ● Mini-B USB for programming and serial monitor
   ● ICSP header for direct program download
   ● Standard 0.1” spacing DIP (breadboard friendly)
   ● Manual reset switch

Specification:

   ● Microcontroller: Atmel ATmega328
   ● Operating Voltage: (logic level) 5 V
   ● Input Voltage (recommended): 7-12 V
   ● Input Voltage (limits): 6-20 V
   ● Digital I/O: Pins 14 (of which 6 provide PWM output)
   ● Analog Input: Pins 8
   ● DC Current per I/O: Pin 40 mA
   ● Flash Memory 32 KB (of which 2KB used by bootloader)
   ● SRAM 2 KB
   ● EEPROM 1 KB
   ● Clock Speed 16 MHz


Note: this board DOES NOT come with a Mini USB to USB cable, in case you need the cable, please make a remark for your ordering.


Package Includes:

1 X Arduino Nano V3.0 (CH340) micro controller soldered Pin


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
