ESP32-S3 Touchscreen Module, 2.8" 240x320 IPS LCD EPS32 Display with WiFi Bluetooth Capacitive Touch Screen for Arduino IoT Projects

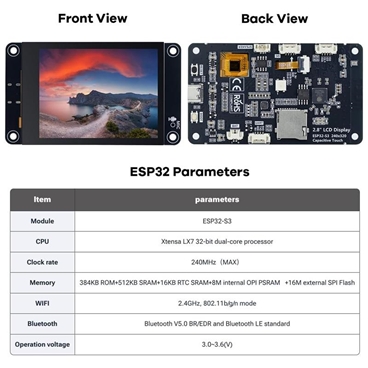

Specifications:

Module: ESP32-S3
CPU: Xtensa LX7 32-bit dual-core processor
Frequency: 240MHz (maximum)
Memory: 384KB ROM + 512KB SRAM + 16KB RTC SRAM + 16MB external QSPI Flash
Mode: Bluetooth + WiFi
Screen Size: 2.8 inches
Screen Type: IPS TFT
Touchscreen Type: Capacitive Touchscreen
Resolution: 240xRGB x 320 pixels
Colors: Maximum: 262K (RGB666)
Common: 65K (RGB565)
Driver IC: ILI9341V
Display Interface: 4-Line SPI (connected to ESP32)
Viewing Angle: ALL 0'CLOCK
Backlight Brightness (Typical): 280 cd/m²
Backlight Type: 4 White LEDs
Operating Voltage: 5.0V
Operating Temperature: -30°C to 80°C
Storage Temperature: -30~80(℃)

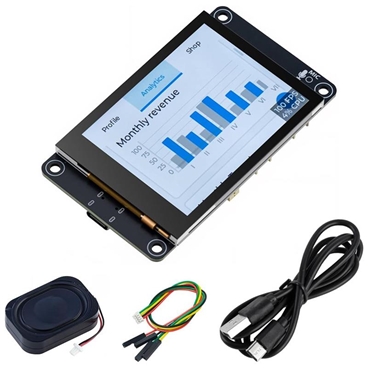

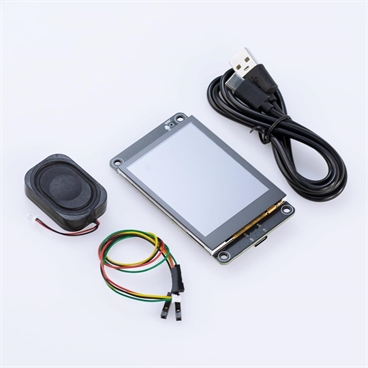

Package includes:
1 x 2.8" touchscreen
1 x usb c cable
1 x speaker
1 x jumper cable
