Description:

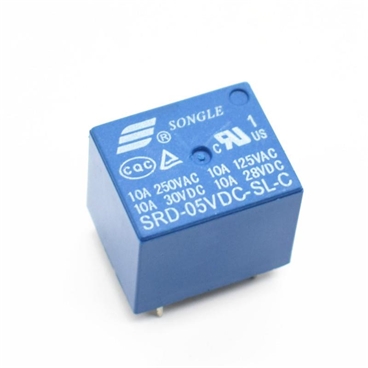

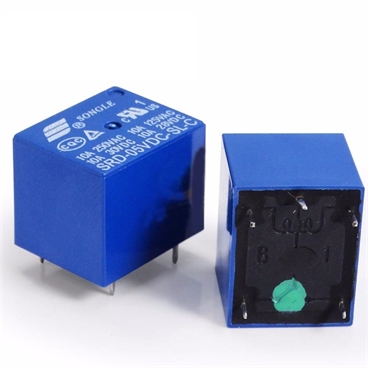

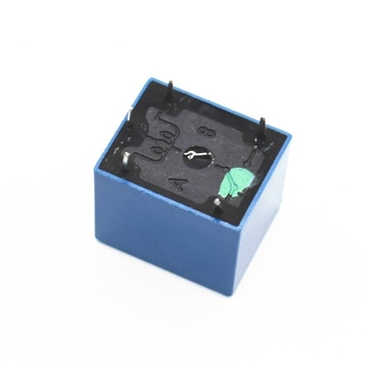

Mini 5V DC Coil Power Relay SRD-5VDC-SL-C PCB 5 Pin Type
Coil and contacts:1500VAC/min.
Contact and contacts: 1000VAC/min.
Insulation resistance: >=100M (ohm).
Mounting form: PCB.
Contact form: 1a, 1b, 1c.
Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC.
Contact resistance: <=100m (ohm).
Electrical life: 100,000.
Mechanical life: 10,000,000.
Coil rated voltage: 3-48VDC.
Coil power: 0.36W, 0.45W.
Coil pick-up voltage: <=75%.
Coil drop-out voltage: >=10%.
Ambient temperature: -25 degrees Celsius to +70 degrees Celsius.
Size: 19.6MM*15.4MM*15.5MM
Package includes:
1 X Power Relays PCB Type SRD-05VDC-SL-C 5V 10A 250VAC 5PIN
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
