Product Introduction:
1.Power Supply Voltage:12V (VIN+ connects with 12V positive,GND- connects with 12V negative)
2.Board Size:45*65*20mm
3.Quiescent Operating Current:<=1mA
4.Whole Absorption Current:<150mA
5.Max Remote Control Distance:8M
6.Relay Loading Capacitiy:250V AC10A;125V AC10A;30V DC10A;28V DC10A
7.Operating Principle:when press CH1,the relay 1 will operte and LED1
will be on;if press again,relay 1 will release and LED1 will be off;CH2
key can control relay 2 and LED2 in the same way;and CH3 and CH4 so
on;the power key on remote control can control all the relays absorption
and release in the same time.
Conenction Picture:
Package includes:

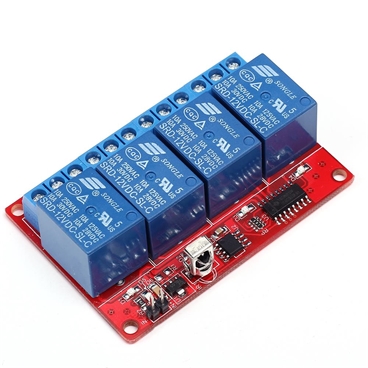

1 X 12V 4 Channel IR Remote Control Relay Module Power Switch
1 X IR remote control
Note: all the descriptions and prices are subject to change without prior notice.
Free Shipping: No
Shipping Weight/Unit(g): 0.00
Std. Packing Qty. (pcs): 1
