Specification:
Input Voltage: DC 10V~14V
Standby Current: <5mA
RF Frequency: 433Mhz
RF Working Mode: Superheterodyne Reception
Receiving Sensitivity: -108dbm
Remote Control Receiving Distance: More then 100m in empty space
Decoding Mode: single chip decoding
Storable Remote Control: store up to 19 different codes
Working Mode: jog, self-lock, inter-lock
Wiring Mode: fixed wiring post
Output Mode: normally open, common, normally closed
Supported Remote Control Mode: learning code (1527), fixed code (2260)
How To Operation:
Clear Code:
Press
and hold the learning button for 8 seconds. When the indicator is off
and returns to always-on, the data is successfully cleared.
Note: The remote control can store up to 19 different codes and code must be cleared before learning any function.
Wiring:
1. "+" : Connect to the positive pole of 12V power supply;
2. "-" : Connect to the negative pole of 12V power supply;
3. NO: output; normally open port of the relay;
4. COM: output; common port of the relay;
5. NC: output; normally close port of the relay;
NOTES:
1. Be sure to clear the code once for the first time use.
2. Please avoid the interference source and similar shield cover while installing.
3. Improper use will reduce the performance and longevity of the product, even bring potential safety hazard in severe case.
4. Suitable for controlling small power household appliances[Use high power for controlling fans].
About Working mode:
Momentary mode: Push the remote button, the relay connects, release the remote button , the relay disconnects.
Toggle mode: Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
Latching mode: Push the remote button A, the relay connects, push the remote button B, the relay disconnects.
Time delay mode: Push
the remote control button, the relay connects, from when release the
remote button, after 5s or 10s or 15s, the relay disconnect
automatically .
Clearing the code:
Push the learning button on the receivers for 8 times , the codes will be cleaned .
After clearning the code, all the remote control cannot work any more.
Learning the code: (Momentary)
1)Push the learning key on the receiver once time , it comes into momentary setting mode .
2)Wait for a moment, the LED will be off , it comes into learning process .
3)Push a button on the remote controller, LED indicator on the receiver board will flash then go off.
4)After 3 seconds, the LED indicator will be on again, the momentary model is leart and set successfully.
Learning the code:（Toggle)
1) Push the learning key on the receiver twice, it comes into toggle setting mode
2) Wait for a moment, the LED will be off , it comes into learning process .
3) Push a button on the remote controller, LED indicator on the receiver board will flash then go off.
4) After 3 seconds, the LED indicator will be on again, the momentary model is leart and set successfully.
Learning the code: (Latching)
Note:
When you choose for latching mode, in order to learn more remote
control, you need to learn two different button, the first time learnt
is for "ON", the second time learnt for "OFF".
For example: button A = ON, button B = OFF
1)Push the learning key on the receiver triple time , it comes into latching mode .
2)Wait for a moment, the LED indicator on the receiver board will flash then come off.
3)Push the remote button A.
4)LED flash for 5 times.
5)Push the remote button B.
Led flash for 5 times.
After 3 seconds, the LED indicator will be on again, learning successfully, A = ON, B = OFF .
Learning the code: (Time delay mode)
1)Push the learning key on the receiver forth time , the time dealy for 5 seconds .
2)Push the learning key on the receiver fifth time , the time delay for 10 seconds .
3)Push the learning key on the receiver sixth time , the time delay for 15 seconds .
The LED indicator will be off .
Push the remote button, the LED flashes and then goes off.
After 3 seconds, the LED indicator will be on again, the time delay mode is set successfully .
Package Includes:

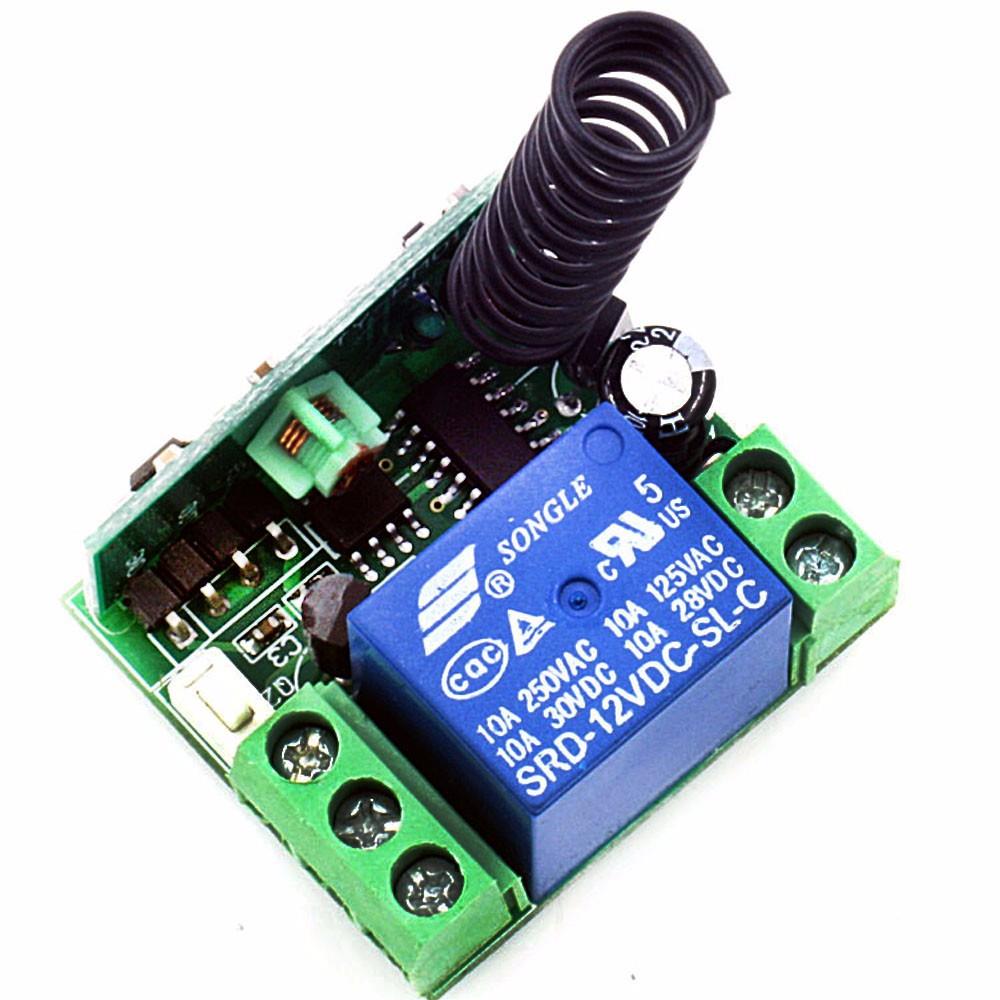

1 X12V 433MHz Single Channel Wireless Remote Control RF Transmitter (receiver)
