51 AVR programmer ISP USBASP downloader

SKU
MDL.1373
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

200+ RFQ
<200 RFQ
20+ RFQ
500+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

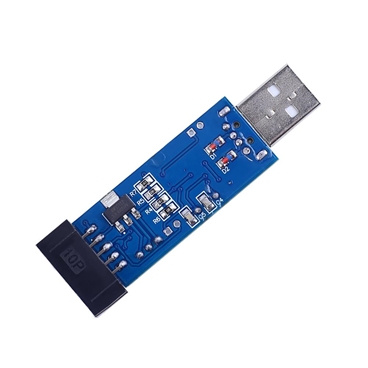

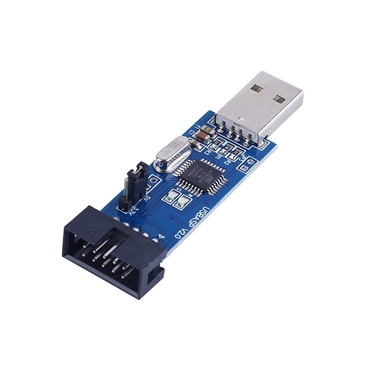

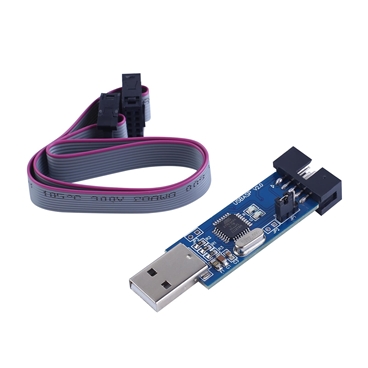

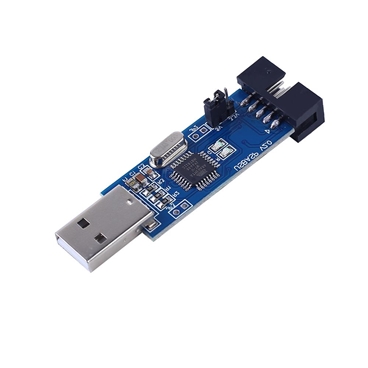

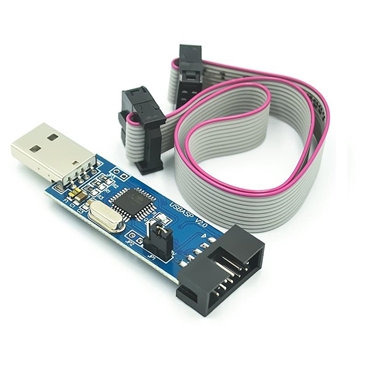

USBASP USBISP 51 AVR Programmer Downloader USB ISP USB ASP ATMEGA8 ATMEGA128 Support Win7 + 10 Pin to 6 Pin Adapter

1.Description:

It is a USBASP downloader.This product can be directly connected to the computer USB port,a real USB downloader product,through which it connects to the target board,can download and program the single-chip microcomputer,and is easy to use.It is especially suitable for notebook computers,desktop computers,and download and debug through USB port programming.


2.Feature:

 1).Onboard ATMega8 (L) chip

 2).With two indicator lights for power supply and programming.

 3).Onboard 500mA overcurrent protection self-recovery fuse.

 4).Support 5V and 3.3V power supply for the target board.

 5).It supports AT89S51/52 MCU.

 6).Support all ASP chips of AVR.

 7).The output port is an ATMEL standard port.

 8).There is a USB power supply and the target board supports a target voltage of 5V,which can be selected through the jumper cap connection.

 9).AUTOSPEED can automatically adjust the speed of the firmware,the downloader will automatically track the chip frequency to be programmed,and automatically change the speed to achieve automatic speed adjustment.

 10).Reserve MOSI,MISO,RET,SCK,VCC,GND.6PIN interface,convenient for users to connect to the target board as needed.

 11).The PROGRAMMING programming interface is reserved,and users can upgrade the downloader firmware by themselves.


3.Parameter:

 1).Product Name:USBASP Downloader

 2).Supply Voltage:DC 3.3V-5V

 3).Programming Software:AVR_fighter,PROGISP1.66,PROGISP1.67,PROGISP1.68

 4).Work Temperature:-25℃~85℃

 5).Work Humidity:5%~95%RH

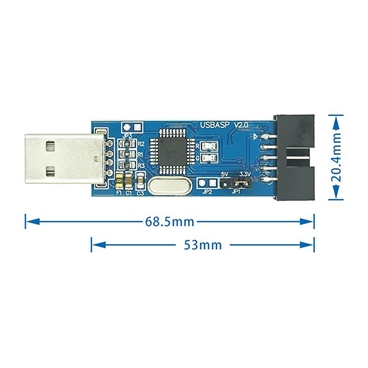

 6).Size:68*21*15mm


4.Interface Definition:

 1).MOSI:P1.5

 2).MISO:P1.6

 3).SCK:P1.7

 4).RES:RST

 5).GND:GND

 6).5V:VCC


5.Chips that Support Programming:

 1).51 series:AT89S51,AT89S52,AT89S53,AT89S8253,AT89S2051,AT89S8252,AT89S4051

 2).AVR series:ATTiny12(L),ATTiny13(V),ATTiny15(L),ATTiny24(V),ATTiny25(V),ATTiny26(L),ATTiny2313(V),ATTiny44(V),ATTiny45(V),ATTiny84(V),ATTiny85(V),AT90S2313(L),AT90S2323(L),AT90S2343(L),AT90S1200(L),AT90S8515(L),AT90S8535(L),ATMEGA48(V),ATMEGA8(L),ATMEGA88(V),ATMEGA8515(L),ATMEGA8535(L),ATMEGA16(L),ATMEGA162(V),ATMEGA163(L),ATMEGA164(V),ATMEGA165(V),ATMEGA168(V),ATMEGA169(V),ATMEGA169P(V),ATMEGA32(L),ATMEGA324(V),ATMEGA325(V),ATMEGA3250(V),ATMEGA329(V),ATMEGA3290(V),ATMEGA64(L),ATMEGA640(V),ATMEGA644(V),ATMEGA645(V),ATMEGA6450(V),ATMEGA649(V),ATMEGA6490(V),ATMEGA128(L),ATMEGA1280(V),ATMEGA1281(V),ATMEGA2560(V),ATMEGA2561(V),AT90CAN32,AT90CAN64,AT90CAN128,AT90PWM2(B),AT90PWM3(B)






Package includes:

1 X 51 AVR programmer ISP USBASP downloader



Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
