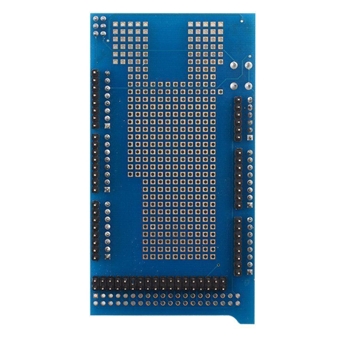

Arduino Mega2560 Protoshield

This set is ideally suited to allowing you to prototype a circuit onto a shield by providing all the connections on an Arduino Mega 2560,which feature standard sockets with a pin pitch of 2.54mm.

They are solidly constructed to allow repeated use once attached to a circuit board. A number of simple components are preinstalled that you can use to help realise your project.

A large area of points is available in the central area for longer term prototypes; alternatively a 170 point bread board can be used.

The bread board is sticky backed to allow you to attach it to a surface or the shield itself.

Compatible match with Arduino Mega 2560 pins

Circuit board clearly marked

On-board 5V and GND rail

2 general use LEDs

1 general use button

1 reset button

Suitable placing for IC

Self-adhesive backing for Breadboard

Package Includes:

1 X Prototype Shield Expansion Board

1 X 170 holes Mini Breadboard ( sticky backed )
