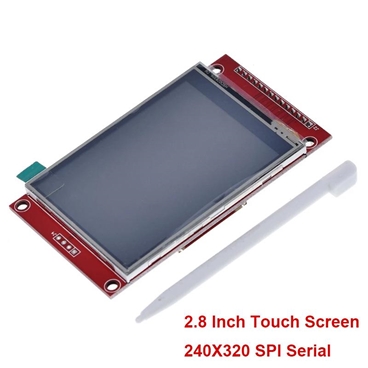

2.8" SPI TFT LCD Display With Touch Panel

Specification:

Type: Touch Panel
Size:  2.8" SPI Serial
Display area:36.72(W)X48.96(H)mm
Size: 85 x 4.8cm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o'clock
Color Depth: 262K/65K
Resolution (dots): 240RGBX320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU

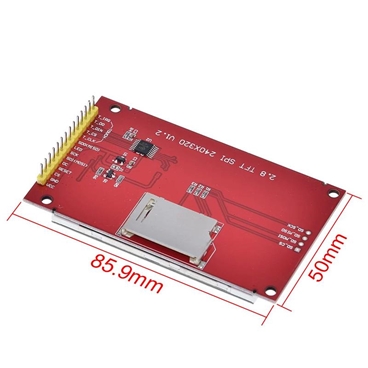

With PCB plate (including power supply IC, SD), compatible with 5110 interface

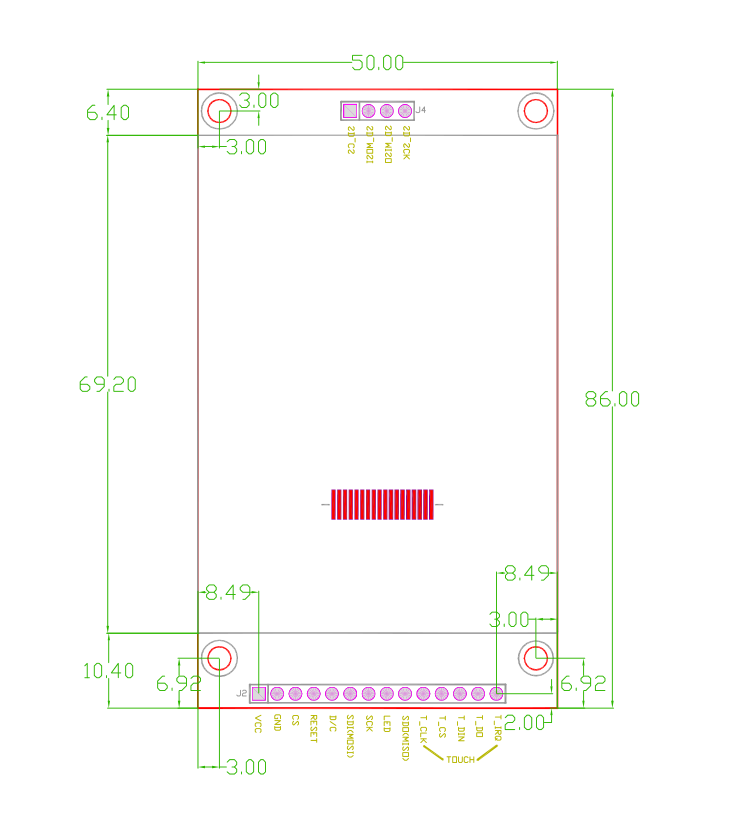

PCB Design:

Package includes:

1 X 2.8" SPI TFT LCD Display With Touch Panel

Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
