5 Axis MACH3 CNC breakout board interface for stepper motor driver

SKU
3DP.1002
Customer #
MOQ
10
Packaging
1pcs/lot
Unit Price
RFQ
Unit Price
from $0

Payment Accepted

Wholesale

Prices

50+ RFQ
<50 RFQ
20+ RFQ
200+ RFQ

Buyer Protection

  • Full Refund if you don't receive your order
  • Full or Partial Refund, if the item is not as described

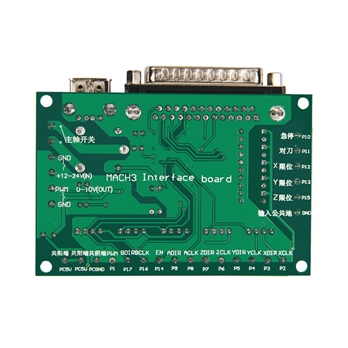

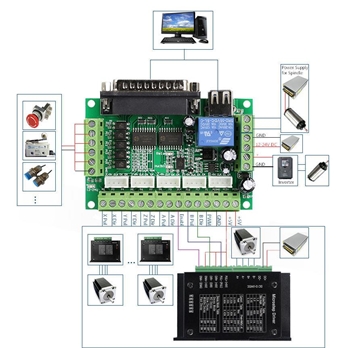

The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller. The breakout board using high-performance three-state bus driver 74HC244 and Schmitt inverter 74HC14 amplified, The input signal is amplified, rectified, filtered to make the drive capability of the output signal more stable and stronger. With this 5 axis breakout board, any 1-5 Microstepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc. parallel-control CNC software.


  • High performance, cost-effective.

  • Maximum support 5-axis stepper motor driver controllers.

  • Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.

  • USB power supply and peripherals powered phase are separated to protect computer security.

  • All the signals are opto-isolated which can protect your computer security.

  • 5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc.

  • Wide input voltage range: 12-24V, and with anti-reverse function.

  • One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.

  • Output 0-10V analog voltage for inverter to control the spindle speed.

Electrical properties (ambient temperature Tj = 25C pm)

Input Voltage
USB port from PC and 12-24V power supply
Drive type
Pulse and Direction Signal Control
Suitable Microstep Driver
2 Phase Microstep Driver
Net weight
Approx 75g
Dimensions
90 * 70 * 20mm (L*W*H)


Note: all the descriptions and prices are subject to change without prior notice.

Free Shipping: No

Shipping Weight/Unit(g): 0.00

Std. Packing Qty. (pcs): 1
