Description:
Size: 1.44 inch
Resolution:128 X 128
Instructions Program default IO connections:
sbit LCD_CS = P0 ^ 0; Chip Select
sbit LCD_RS = P0 ^ 2; data / command switch
sbit LCD_SDA = P1 ^ 5; Data
sbit LCD_SCK = P1 ^ 7; Clock
sbit LCD_REST = P0 ^ 1; Reset
Power
TFT
Power: Screen Power is 2.8-3.3V; remember not to use 5V (Modules with
PCB's have inherited 3V regulator IC, you can enter 5V)
Backlight
power supply (LED pin): 3.2V maximum backlight power (At 3.3V supply can
be connected in series for 10 ohm current limiting resistor in series
with 100 ohms or 5V Resistance)
Data port level: theoretically can not let the data port level exceeds 3.3V
Package Includes:

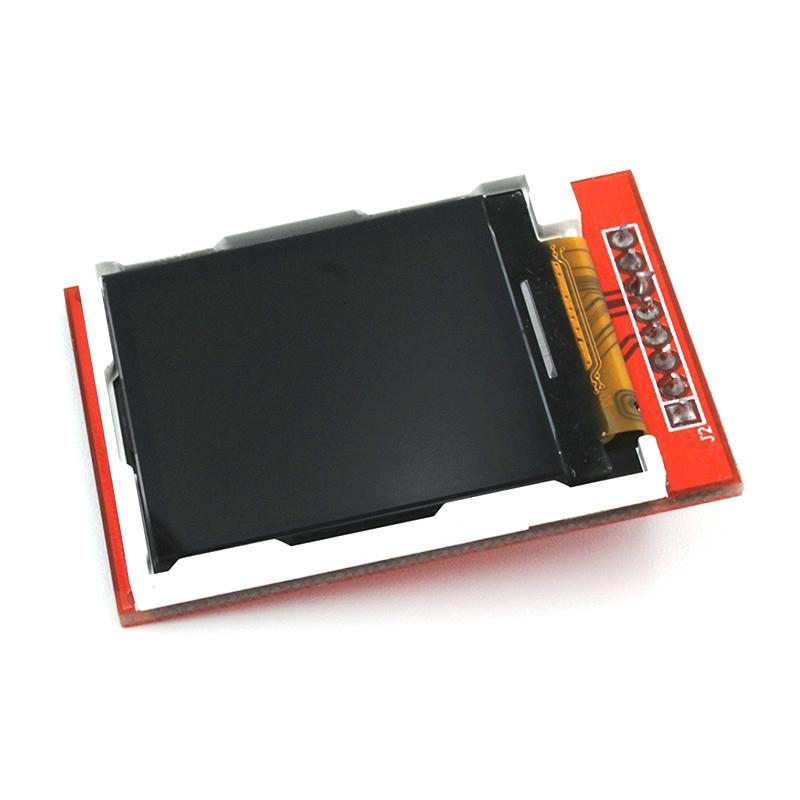

1 X 1.44-inch TFT Color Screen Module
